Products

Assembly Service
We provide Customized semiconductor Packaging and Testing services. OEM service for your bio-sensor.
Features
- Bio / Medical
- SiP/MCM Module

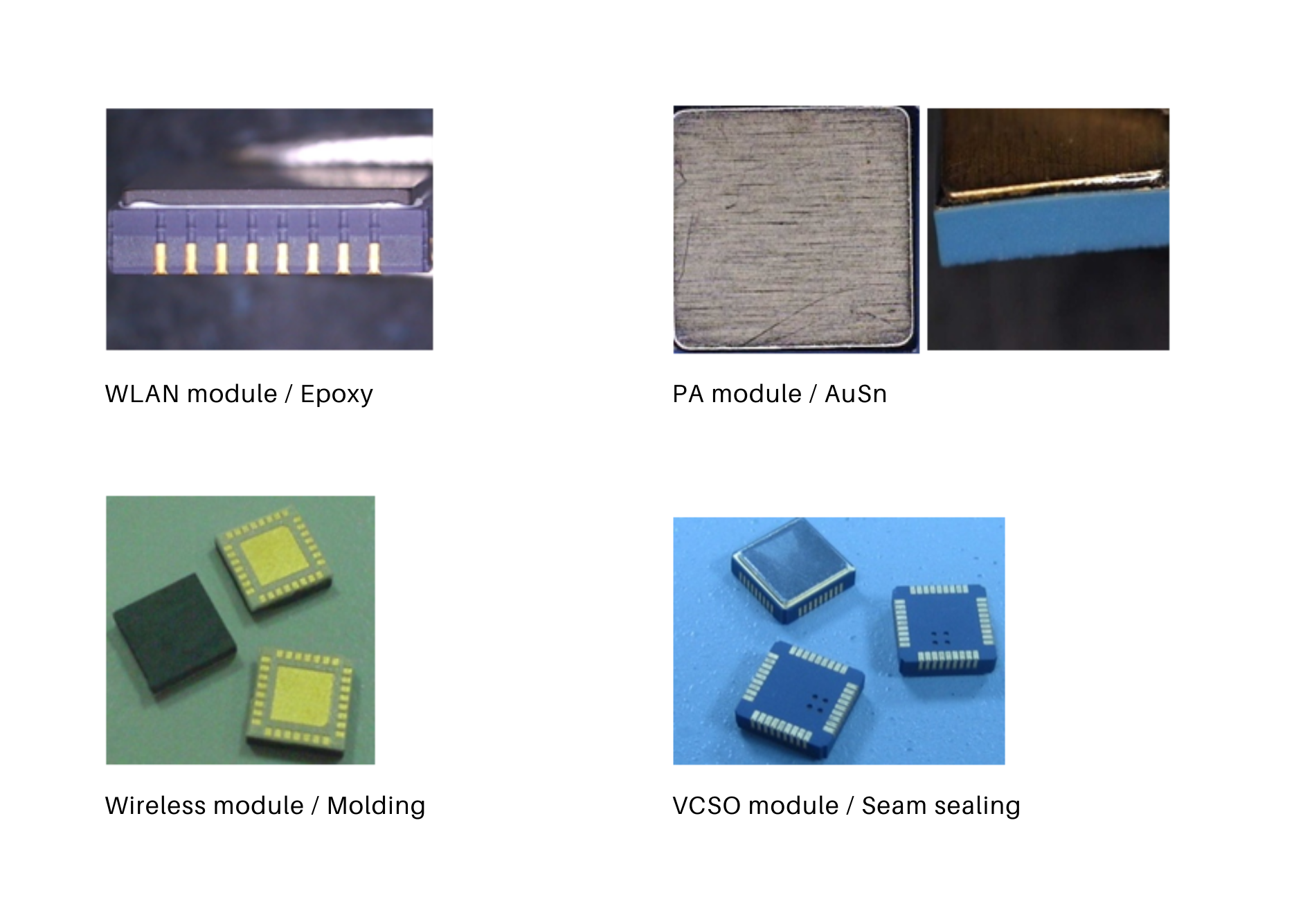

- QFN Module
- MEMS Module
- COB Module
- ISO 13485 certificated
- Bio sensor OEM service
- Provide bio / medical semi-conductor packaging and testing service
- Antibody/ Antigen coating service. ( Automation production line)

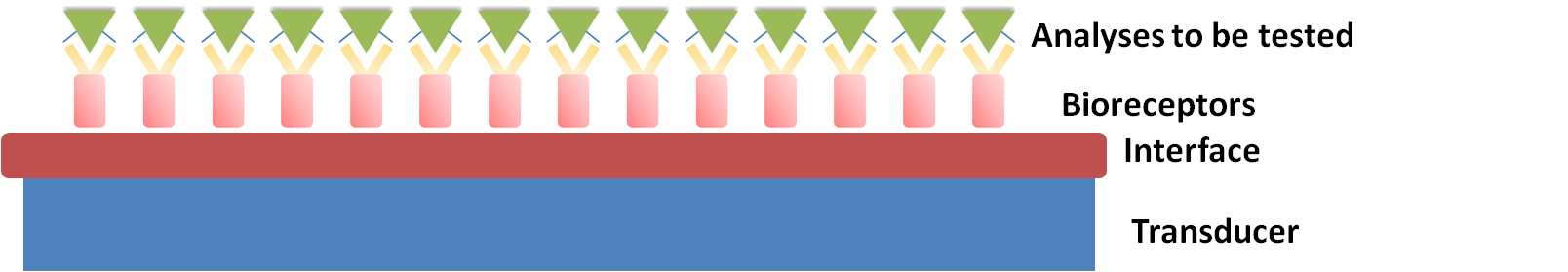

Bio Module Structure
We can support from SMT to semiconduct Multi-Chip include GaAs, GaN and silicon IC.
OEM assmebly for SiP (System in package) and MCM(Multi-Chip module).
SiP molding assembly
- Wi-Fi Module: ASIC x 2(Chip wires), MMICx3, componentsx20~40pcs(SMT), Au ball bondings, Liquid Molding and Dicing
GaAs MMICs Assembly
- MMICs assembly for HPA, LNA, SPDT and LIMITER: MMIC x 4(ribbon and wedge wires), capacitors x 10, Ceramic lid with Au/Sn seal
- MMIC x 1(ribbon wires), capacitors x 5, Ceramic cap with Au/Sn seal
GaN chip Assembly
- GaN x 2(Gold wires), capacitors x 2, Alumina substrate x 2, Ceramic cap with epoxy seal (Metal Lid)
- GaN HEMT Package
- GaAs FET Package
- Good loop height control for RF device

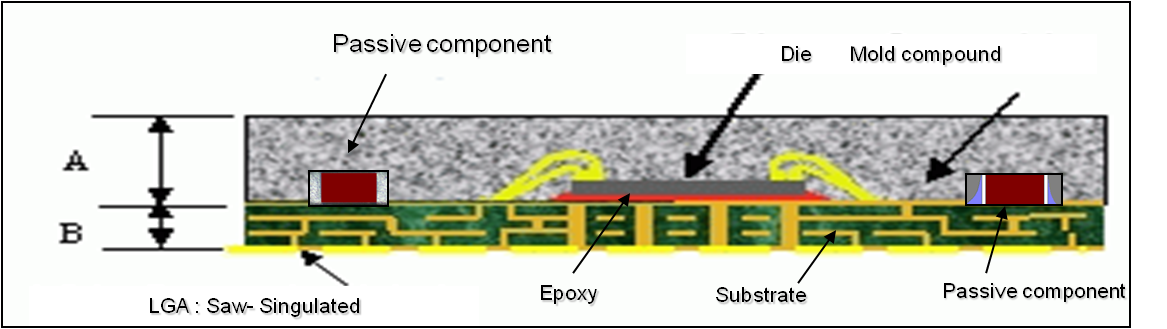

SiP Module Structure
OEM Service for Air cavity and molding types. The material includes Ceramic、PCB and Pre-mold type etc.
MEMS module OEM service. Reference : Gyroscope, G-sensor, AR/VR and thermal imaging related products.

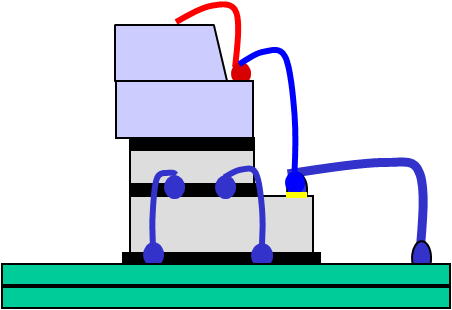

MEMS reference (G-sensor MEMS)
- G-sensor MEMS: G-cell x 1, IC x1, Gold ball bonding, Stack die & bonding
- Special DCT for G-cell Die Attachment
- Stack IC die on G-cell
MEMS reference (Gyroscope MEMS)
- Gyroscope MEMS: Gyroscope Mems x 1, ASIC IC x1, Gold ball bonding, Stack die & B-stage
- Stack Mems die on ASIC IC
- Gold ball bonding
COB Module OEM service.
For example : The Camera Module. Mainly for Resolution 2.3 M pixel.
- Interior camera for automotive: Interior camera uses AI to detect driver distraction and fatigue.

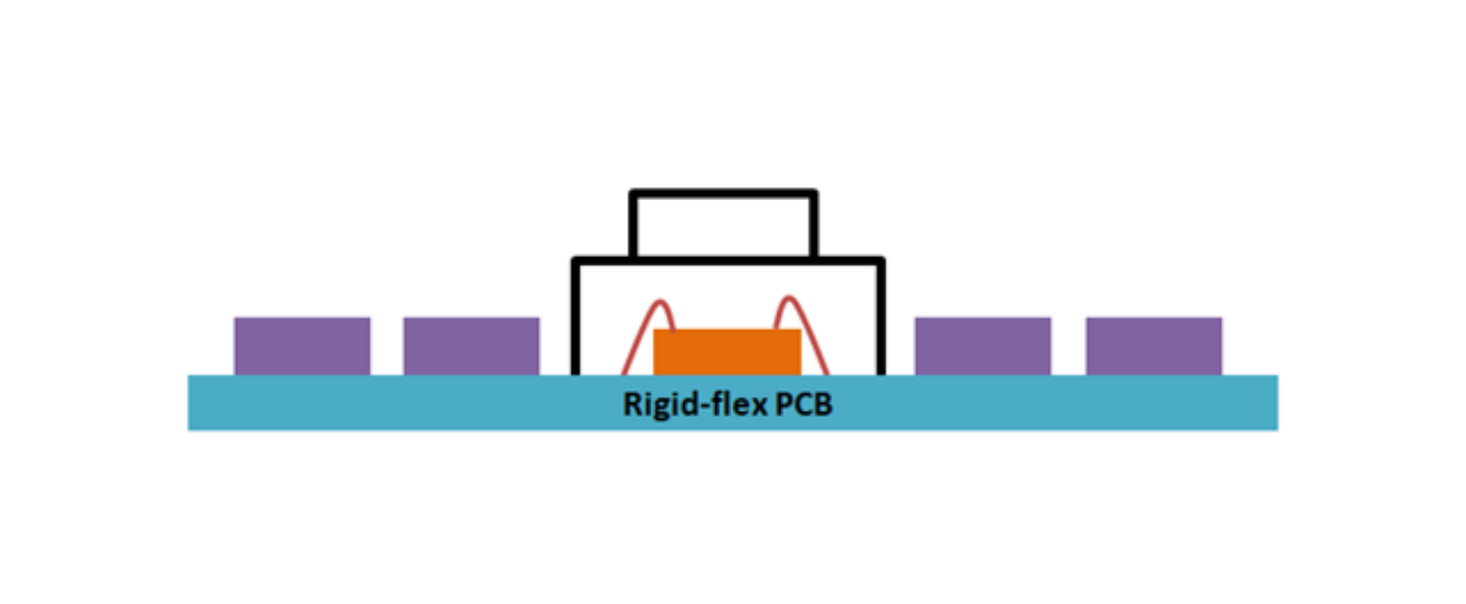

Camera Module Structure
